Name: HPC Fire Linear Trough Fire Pit Insert MLFPK24 TRGH-FLEX-LP-ST
SKU: 609570

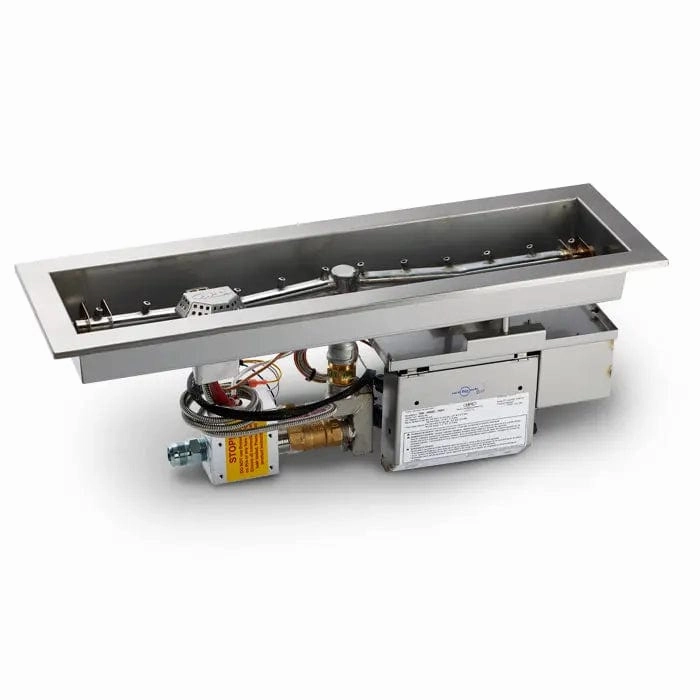

Linear Trough HPCFire Pit Insert MLFPK24 TRGH-FLEX-LP-ST Product Details

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Includes:Trough pan, T-Burner, bracket, spider guard screen, and key valve.

How It Works
Start-Up:This is done by lighting a long-stem lighter next to the perimeter of the burner then slowly opening the key to the valve. Leave the key in the valve during use.
Operation:Flame height may be adjusted by turning key to valve- counterclockwise provides more flame, clockwise lowers flame.
Shut Down:To turn OFF the fire pit simply turn the key to the valve clockwise to the OFF position. Remove key.

Features:

Available in 24", , and Models with Small Tanks.
Fully Assembled and ready to install.
Flex Line configuration provides versatile and simple installation.
Valve mounting bracket included- for safe mounting of control have.
Flame height is adjustable using the key valve.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Optional Install & Controls: Paver Block Bracket, Key Extension Kit, Long Keys, and Spark Ignition Kit.
Made of #304, 18 gauge Stainless Steel
The spun design adds rigidity
Welded gas fitting for strength
Weep holes for drainage

Purchase the HPC Fire Linear Trough Fire Pit Insert MLFPK24 TRGH-FLEX-LP-ST here in Flame Authority!

Manuals

Manuals:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected]to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

Specifications:

Model:

MLFPK24 TRGH-FLEX-LP-ST
TOR-MLFPK24 TRGH-FLEX-LP-ST

Dimensions:L-24" x W-7.9" x D-2.5"
Max BTU:50,000
Nozzle BTU:65,000
Burner:24" T-BurnerStandard / Torpedo
Gas Type:Liquid Propane
Ignition Style:Match Lit
Required Items:Lava Rock / Rolled Lava Stone (1 bag), River Rock (1 box), Fire Glass (20 lb), Flex-Form Install Collar (1 box)
Certification:CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
Warranty:Lifetime warranty on burners

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

1 Bag Required for this unit

Western Driftwood

Lava Rock

1 Bag Required for this unit

Black Ceramic River Rock

1 Box required for this unit

Fire Glass

20 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

44 X 30" Rectangle Black Vinyl CoverFPC-44X30

44" x 30" Rectangle Black Vinyl Fire Pit Cover. Pull string at the bottom, Fits 34x20 - 44x30 enclosures.

Match Lit Models (MLFPK) Paver Block Bracket

This bracket allows additional flexibility and installation ease of the MLFPK decorative key valve. The faceplate is adjustable from 8" to 12" in width.
Key valve, flange, and key not included. Designed for Dante straight key valve.

31 X 15" Linear Wind GuardWG31X15-L

Square, 31"x 15", 6" Height
Features:- Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.

44" SS Free Form Install Collar - 2per BoxIC44SS-FF

The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
1 Box required for this unit
