72" Linear Trough Electronic Ignition HI/LO HPCFire Pit Insert Product Details

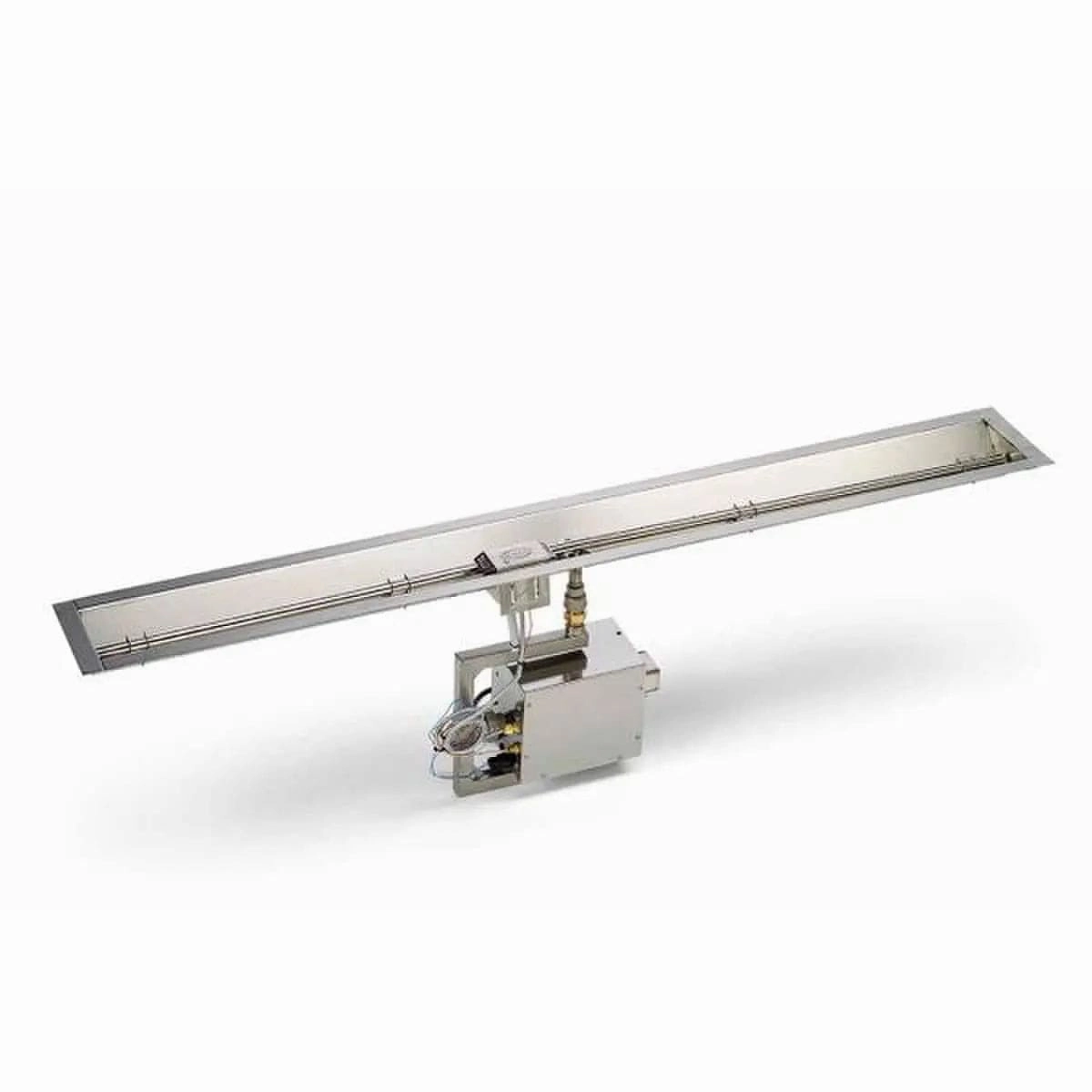

The HPC Fire 72" Linear Trough Electronic Ignition HI/LO Fire Pit Insert is a fully assembled, commercial-grade certified Fire Pit insert. With a powerful high-quality construction material that has the latest technology, this will complement your gas fire pit project.
The Electronic Ignition design allows for a remotely controlled Fire Pit with an On/off or HI/LO setting. There is a flame sensing system that automatically shuts off the gas valve if the flames get turned off.
There is asidewall thataids with media retention, Pan Lip provides for the recessed burner and blowout box
Purchase the HPC Fire 72" Linear Trough Electronic Ignition HI/LO Fire Pit Insert here in Flame Authority!
Features
Features:
- Fully Assembled- ready to install. Control components are protected within the valve box.
- Start via wall switch or remote control; Auto re-light if the flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter
- On/Off models: Use with optional wall switch, Remote Control, or your whole house system
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff
Manual
Manual:
Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected]to get the best-suited Fire Pit Burner Kits for your needs.
Specifications
Specifications:
- Model:72SSEI-TRGH-HI/LO
- Dimensions:L-72" x W-7.9" x D- 2.5"
- Max BTU:150,000
- Nozzle BTU:200,000
- Burner Type:72 T-Burner Standard / Torpedo
- Gas Type:Natural Gas / Liquid Propane
- Power Options:120VAC / 24VAC
- Ignition Style:Electronic Ignition On-Off
- Required Items:Lava Rock or Rolled Lava ( 2 bags ), Flex-Form Install Collar ( 2 boxes), Fire Glass ( 50lbs ), River Rock ( 2 boxes ), FPL30/36 Log Set ( x2 )
- Certification:CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
- Warranty:Lifetime warranty on burners
Outdoor Fire Logs and Rocks
Arizona Weathered Oak
Aspen Birch
Rolled Lava Stone
- 2 Bags Required for this unit
Western Driftwood
Lava Rock
- 2 Bags Required for this unit
Black Ceramic River Rock
- 2 Boxes required for this unit
Fire Glass Media
- 50 lbs Required for this unit
Cobalt Blue
Pacific Blue
Pacific Blue Reflective
Black
Clear
Starfire
Gray Reflective
Copper
Bronze
Optional Accessories
- POWER SUPPLIES - FOR 24VAC & 12VAC MODELS
- Input Primary - 120VAC, 60/50Hz, 1A max Output Secondary - 24VAC & 12VAC, 60/50Hz, 4A
- 120 VAC Outdoor On/Off Remote Control
- Used with EI Fire Pit Systems
- CARLON in-line power control with 3 prongs in/out
- Stainless Steel Rotary Timer
- Available in 2 and 12-hour timer
- 1/2 deep. Double gang box recommended.
- Rotary Timer with NEMA Box
- Available in 2 and 12-hour timer
- NEMA 3R Box with 694 or 695 timer
- Includes timer mounted into the NEMA 3R box for your convenience
- Commercial Emergency Stop
- Push-button with keyed reset allows supervisor confirmation.
- Safely turns off up to 3 circuits plus one fail-safe function.
