Name: HPC Fire 30X12" Rectangle Bowl Fire Pit Insert MLFPK30X12-H-FLEX-LP-ST
SKU: 609336

30X12" Rectangle Bowl HPCFire Pit Insert MLFPK30X12-H-FLEX-LP-ST Product Details

The standard burner is now limited in stock until supplies last.
Feel free to contact us today at 1-800-923-4556 or email: [email protected] for availability.

Hearth Products Controls MLFPK Match Light Fire Pit Kit, Rectangular Bowl Pancombines high-quality construction and reliability to complete your gas fire pit project. The manual ball valve allows simple & reliable control over the flow of the gas while the ignition is achieved simply by taking a lighter or match to the burner as you slowly open the gas valve. The H-shaped burner is constructed from premium 304 stainless steel; each burner features staggered burner ports, a 1/2" female gas inlet, and is neatly machine welded to produce a seamless and durable product. Burners and pans are also backed by a Limited Lifetime Warranty from HPC.

This burner kit is designed for both natural gas and propane applications, the burner will come assembled to the rectangular bowl pan. Also assembled will be the necessary fittings for the sealed control box attached with a flexible gas line; propane units will include a wire mesh spider guard to keep spiders from clogging the gas line.

TheSmall Tank Kitis for use with MLFPK models that are rated at 90,000 BTU or fewer. The kit includes a 90 regulator, 48-inch flex hose, 24-inch flex line, L-bracket, and fittings for each respective model.

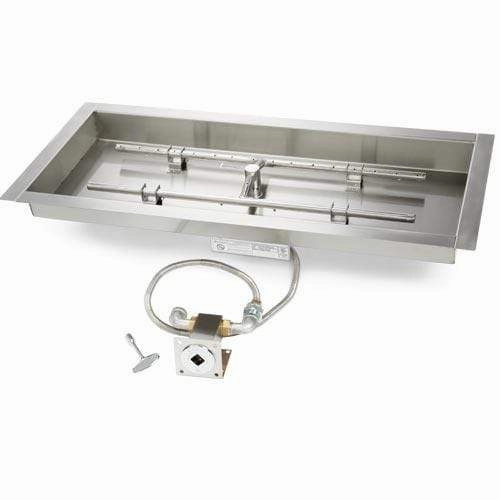

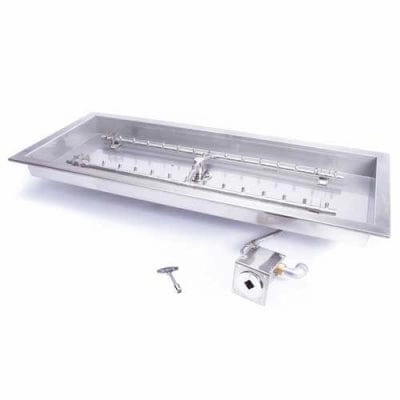

Includes:Bowl pan, Penta burner, bracket, spider guard screen, and key valve.

How It Works
Start-Up:This is done by lighting a long-stem lighter next to the perimeter of the burner then slowly opening the key to the valve. Leave the key in the valve during use.

Operation:Flame height may be adjusted by turning key to valve- counterclockwise provides more flame, clockwise lowers flame.

Shut Down:To turn OFF the fire pit simply turn the key to the valve clockwise to the OFF position. Remove key.

Purchase the HPC Fire 30X12" Rectangle Bowl Fire Pit Insert MLFPK30X12-H-FLEX-LP-ST here in Flame Authority and enjoy the warm comfort around you!

Features

Features:

Available in , 30" x 12" and Small Tank Models
Fully Assembled and ready to install.
Flex Line configuration provides versatile and simple installation.
Valve mounting bracket included- for safe mounting of control have.
Flame height is adjustable using the key valve.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Optional Install & Controls: Paver Block Bracket, Key Extension Kit, Long Keys, and Spark Ignition Kit.
Made of #304, 18 gauge Stainless Steel
The spun design adds rigidity
Welded gas fitting for strength
Weep holes for drainage

Manuals

Manuals:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected]to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

Specifications:

Model:

MLFPK30X12-H-FLEX-LP-ST
TOR-MLFPK30X12-H-FLEX-LP-ST

Dimensions: L-30" x W-12" x D-2.5"
Max BTU: 65,000
Nozzle BTU: 65,000
Burner Type: 24" x 6" H-Burner Standard / Torpedo
Gas Type: Liquid Propane
Ignition Style: Match-Lit
Required Items: Lava Rock / Rolled Lava Stones (2 bags), River Rock (2 boxes), Fire Glass (40 lb)
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements.
Warranty: Lifetime warranty on burners

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

2 Bags Required for this unit

Western Driftwood

Lava Rock

2 Bags Required for this unit

Black Ceramic River Rock

2 Boxes required for this unit

Fire Glass

40 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

62 X 30" Rectangle Black Vinyl CoverFPC-62X30

62" x 30" Rectangle Black Vinyl Fire Pit Cover. Pull string at the bottom, Fits 52x20 - 62x30 enclosures.

Match Lit Models (MLFPK) Paver Block Bracket

This bracket allows additional flexibility and installation ease of the MLFPK decorative key valve. The faceplate is adjustable from 8" to 12" in width.
Key valve, flange, and key not included. Designed for Dante straight key valve.

37 X 19" Rectangle Wind GuardWG37X19-RECT

Square, 37"x 19", 6" Height
Features:- Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.

44" SS Free Form Install Collar - 2per BoxIC44SS-FF

The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
1 Box required for this unit
