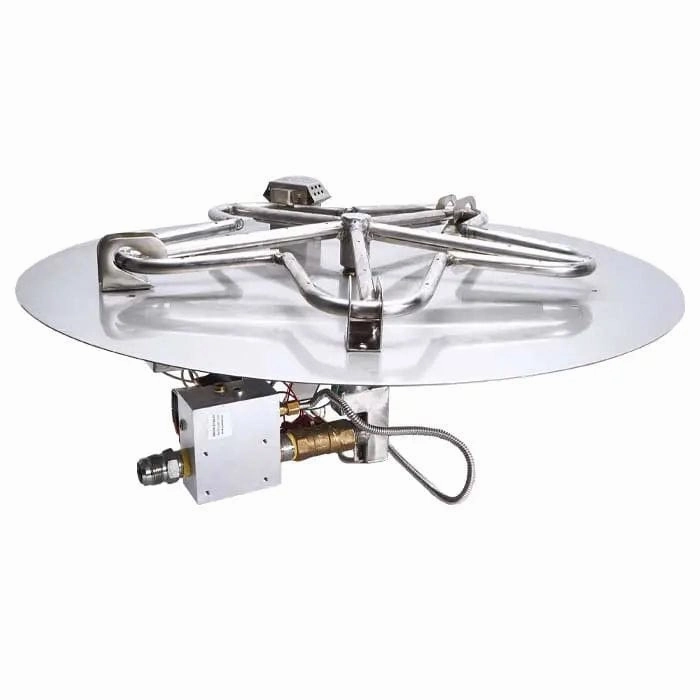

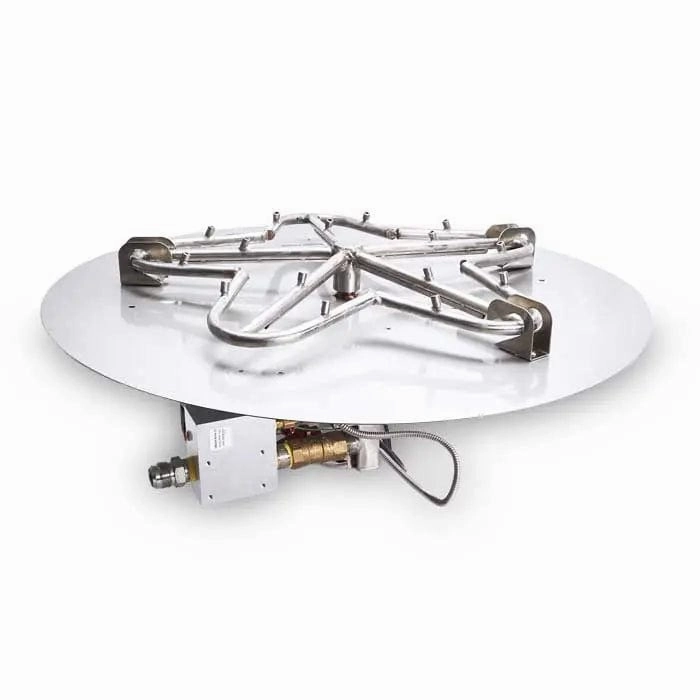

Name: HPC Fire 24" Round Flat Pan Electronic Ignition Fire Pit Insert PENTA24EI
SKU: 609588

24" Round Flat Pan Electronic IgnitionHPCFire Pit Insert PENTA24EI Product Details

The HPC Fire 24" Round Flat Pan Electronic Ignition Fire Pit Insert PENTA24EI is a fully assembled, commercial-grade certified Fire Pit insert. With a powerful high-quality construction material that has the latest technology, this will complement your gas fire pit project.

The Electronic Ignition design allows for a remotely controlled Fire Pit with an On/off or HI/LO setting. There is a flame sensing system that automatically shuts off the gas valve if the flames get turned off.

There is asidewall thataids with media retention, Pan Lip provides for the recessed burner and blowout box

An HPC Original this stainless steel, spun bowl design was launched in 2004 and today is still our most popular pan style.

How It Works:

Start-Up:This is done by the use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts the flow of pilot gas. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms the pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation:While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing the Start sequence.
On/Off Models:Includes the convenience and safety features- optional remote control available.
Bluetooth High / Low Flame Control Models:This option includes a smart remote and App via smart device control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from the fire pit to advise the user of fire pit status (flashing LED).
Shut Down:To turn OFF the fire pit simply use a wall switch, remote control, or whole house system.

Purchase the HPC Fire 24" Round Flat Pan Electronic Ignition Fire Pit Insert PENTA24EI here in Flame Authority!

Features

Features:

Fully Assembled- ready to install. Control components are protected within the valve box.
Start via wall switch or remote control; Auto re-light if the flame is lost.
Ignition is complete using a robust and reliable Hot Surface igniter
On/Off models: Use with optional wall switch, Remote Control, or your whole house system
High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Internal temperature monitoring with overheat auto shutoff

Manual

Manual:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected]to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

Specifications:

Model: PENTA24EI
Dimensions: L-24" x W-24"
Max BTU: 125,000
Nozzle BTU: 125,000
Burner Type: 18" Penta Standard / Torpedo
Gas Type: Natural Gas / Liquid Propane
Power Options: 120VAC / 24VAC
Ignition Style: Electronic Ignition On-Off
Required Items: Lava Rock / Rolled Lava Stones (2 bags), River Rock (2 boxes), Fire Glass (50 lbs)
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
Warranty: Lifetime warranty on burners

Outdoor Fire Logs and Rocks

Arizona Weathered Oak

Aspen Birch

Rolled Lava Stone

2 Bags Required for this unit

Western Driftwood

Lava Rock

2 Bags Required for this unit

Black Ceramic River Rock

2 Boxes required for this unit

Fire Glass

50 lbs Required for this unit

Cobalt Blue

Pacific Blue

Pacific Blue Reflective

Black

Clear

Starfire

Gray Reflective

Copper

Bronze

Optional Accessories

45" Round Black Vinyl CoverFPC-45

45" Black Vinyl Fire Pit Cover; Elastic band, designed for maximum enclosure width of 30-45".
Weight = 5 LBS - Box Dimensions 11x11x9"

30" Round Wind GuardWG30-RD

Round, 30" Dia, 8" Height
Features:- Tempered Glass - Heavy duty 3/16 " clear glass is tempered to improve durability and allow it to withstand high temperatures. Depending on wind guard size- 4 or 6 sections complete the desired shape. Brackets- Polished aluminum brackets and plastic support feet provided.

44" SS Free Form Install Collar - 2per BoxIC44SS-FF

The flex form install collar merges the gap between the fire pit structure and the insert pan for easy installation and auto-centering featured with a curved lip. This flexible install collar allows for an easy 3 step installation saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit.
1 Box required for this unit
