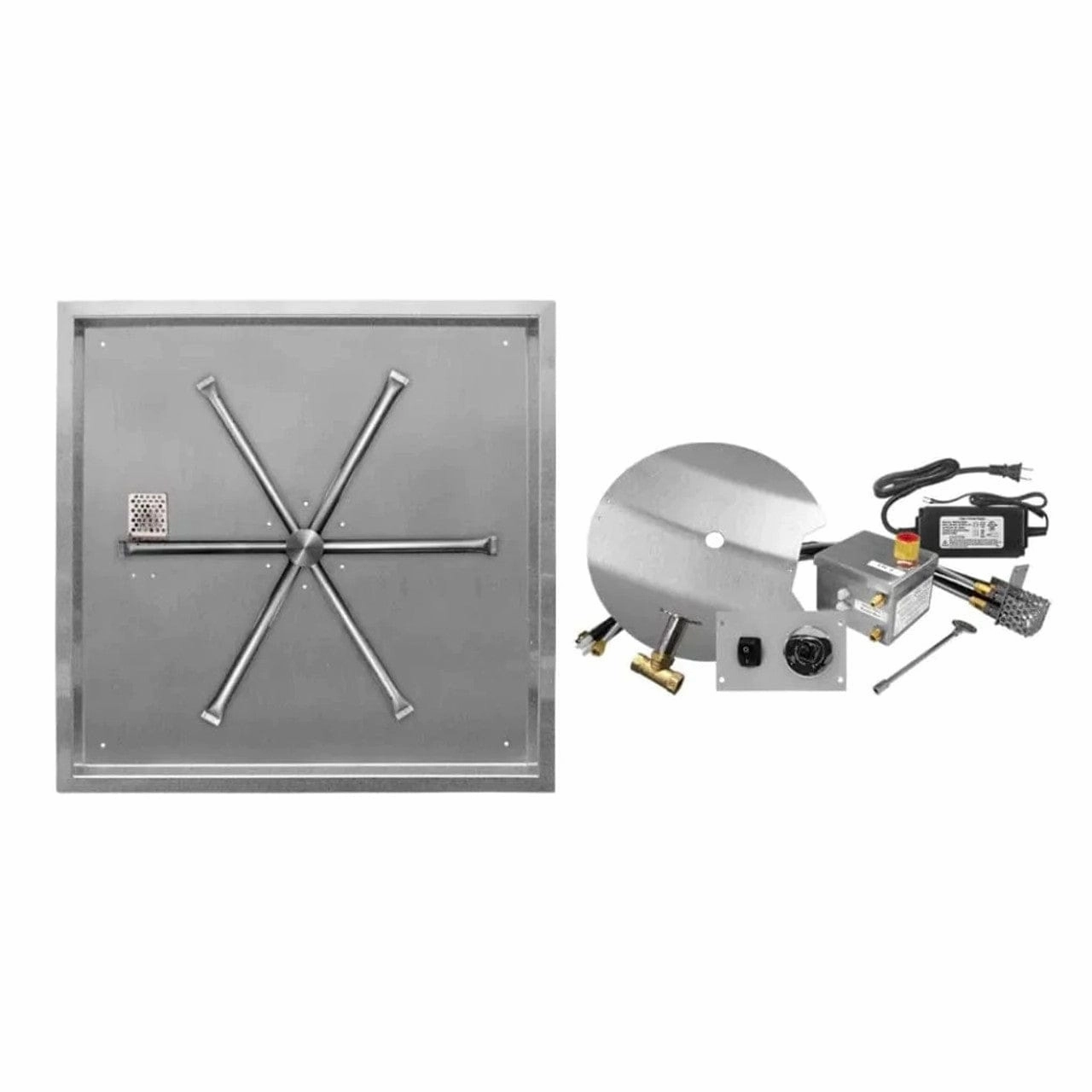

Enhance Your Firegear Stainless Steel TPSI Square Drop-In Natural Gas 26-inch Fire Pit Burner System FPB-26SBS22TPSI-N with Battery-Powered Spark Igniter
The Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner FPB-26SBS22TPSI-N is a top-tier choice for creating a modern and reliable outdoor fire feature. Constructed from high-quality stainless steel, this 26-inch square burner is built to withstand the elements, offering long-lasting durability and resistance to rust and corrosion. The TPSI ignition system provides safe, efficient, and easy flame ignition, ensuring a hassle-free outdoor experience.
Perfect for custom fire pit installations, the square design complements contemporary outdoor spaces, delivering even flame distribution for a warm and inviting atmosphere. This burner operates with natural gas, offering eco-friendly and efficient performance. Whether youre hosting a gathering or simply enjoying the outdoors, the Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner provides both style and functionality, making it the ideal choice for enhancing your patio or backyard.
Add-ons Item: Lava Rock Only-15 lbs Lava Rock as a Base 15 lbs Glass (on top of Lava Rock) 30 lbs. Lava Stones (on top of Lava Rock) 20 lbs Glass Only 70 lbs
Key Features for Firegear TPSI Square Drop-In Fire Pit Burner
- Heavy-Duty Construction: The burner andbowl pan feature 304 stainless steel construction
- The TPSI ignition system offers a simple ignition process
- Burning Spur: A stainlesssteel burning spur provides a realistic flame presence
- High BTU: These kits are designed with higher capacity orifices to provide a larger amount of BTU
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Manuals for Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner
Specifications for Firegear TPSI Square Drop-In Natural Gas Fire Pit Burner FPB-26SBS22TPSI-N
- Pan Size:26"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type: Drop-In
- Burner Pan Material: Stainless Steel
- Shape: Square
- Pan Depth:2
- Min/Max Opening:26 - 27
- Inside Pan: 26
- Ground Level:8
- Side Wall:36
- Combustible Ceiling: 120
- Combustible Wall:18
Caution:DO NOT USE REGULAR STONE OR ROCKdue to susceptibility of explosion.
Gas Pressure
Natural Gas:
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane:
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Disclaimer: BTU listings are based on 7.0WC for natural gas and 11.0WC for liquid propane (LP) to the gas valve. Flex line size and proper gas pipe sizing will alsoaffect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
