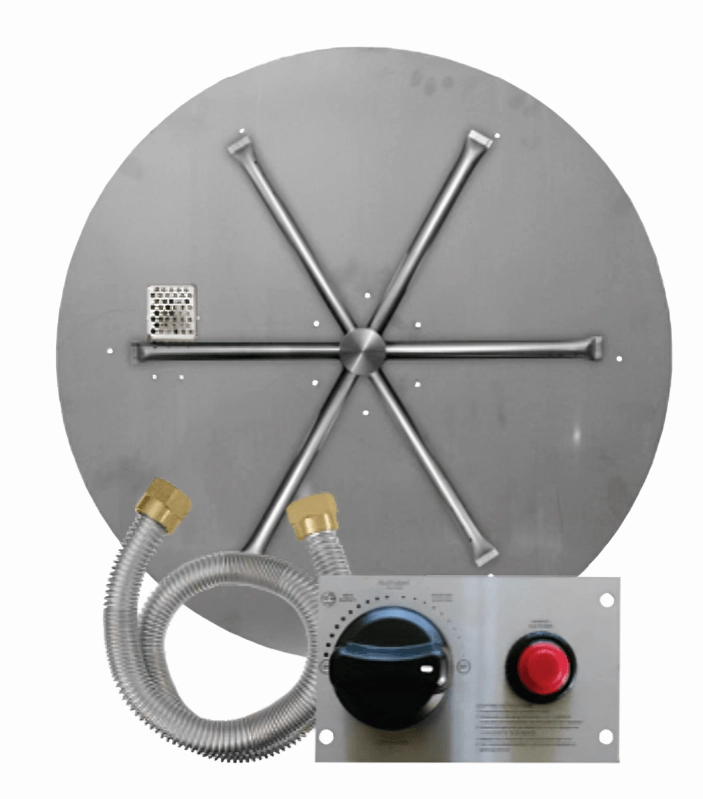

Firegear 26-Inch Stainless Steel TPSI Round Flat Natural Gas Fire Pit Burner System with Battery-Powered Spark Igniter
Why Choose the Firegear TPSI Round Flat Natural Gas Fire Pit Burner FPB-26DBS22TPSI-N?
The Firegear TPSI Round Flat Natural Gas Fire Pit Burner FPB-26DBS22TPSI-N is an exceptional choice for outdoor fire pit enthusiasts. Crafted from premium stainless steel, this burner ensures durability and consistent performance. Its flat, round design provides a sleek, modern aesthetic, while the natural gas configuration offers an efficient and clean-burning flame. Perfect for creating a warm, welcoming ambiance, this burner is easy to install and ideal for enhancing outdoor gatherings with style and functionality.
Key Features for Firegear TPSI Round Flat Fire Pit Burner
- Tested and Approved to ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
- Ready to install
- Most popular ignition system, least amount of cost
- Light a match or a butane lighter
- Can be used in residential installs
- This system is the easiest to use, and with non-listed burners, you can achieve high BTUs and big flames.
Gas Pressures
Natural Gas
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Manuals for Firegear TPSI Round Flat Natural Gas Fire Pit Burner
Specifications for Firegear TPSI Round Flat Natural Gas Fire Pit Burner FPB-26DBS22TPSI-N
- Pan Size:26"
- Burner Size:22"
- BTU:125,000
- Ignition System:TPSI
- Burner Pan Type:Flat
- Burner Pan Material:Stainless Steel
- Disc Depth: 1/16
- Pan Diameter: 25 Dia
- Min.Install Opening:23"
- Ground Level: 8"
- Side Wall: 36
- Combustible Ceiling: 120"
- Combustible Floor: 18"
Caution:DO NOT USE REGULAR STONE OR ROCK due to susceptibility to explosion.
Disclaimer: BTU listings are based on 7.0 WC for natural gas and 11.0 WC for liquid propane (LP) at the burner orifice. Flex line size and proper gas pipe sizing will also affect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
