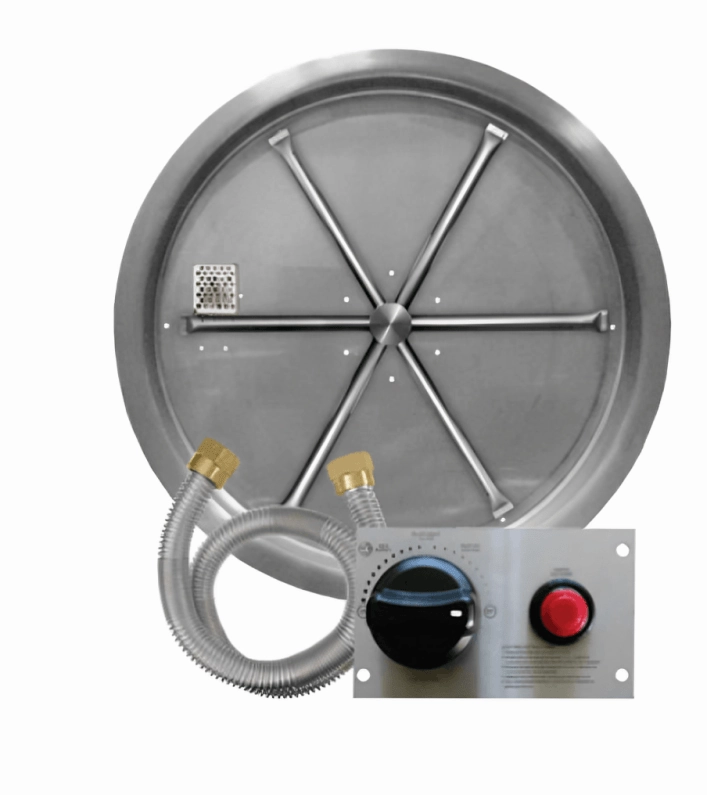

Enhance Your Firegear Stainless Steel TPSI Round Drop-In Liquid Propane 19-inch Fire Pit Burner System with Battery-Powered Spark Igniter FPB-19RBS16TPSI-P
What Makes the Firegear TPSI Round Drop-In Natural Gas Fire Pit Burner FPB-19RBS16TPSI-N a Top Choice for Outdoor Fire Features?
The Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner FPB-19RBS16TPSI-P is the ideal solution for creating a warm, inviting atmosphere in your outdoor living space. Designed specifically for liquid propane, this high-performance burner offers consistent heat output and a beautiful flame pattern, perfect for adding ambiance to your fire pit.
Crafted from high-quality stainless steel, the TPSI burner is built for durability and longevity, ensuring it will withstand the elements and provide years of reliable use. The round drop-in design makes installation quick and simple, fitting seamlessly into your fire pit setup. Additionally, its efficient propane fuel use maximizes performance, while the even flame distribution adds a striking visual appeal to your fire feature.
Add-ons Item: Lava Rock Only-10 lbs Lava Rock as a Base 10 lbs Glass (on top of Lava Rock) 20 lbs. LavaStones (on top of Lava Rock) 15lbs Glass Only 40 lbs
Also Available in: , , , , ,
Key Features for Firegear TPSI Round Drop-In Fire Pit Burner
- Tested and Approved to ANSI Z21.97-2014/CSA 2.41-2014 standards by Underwriters Laboratories (UL)
- Ready to install
- Thermocouple Manual Safety TMS Technology (Non-Piloted, Non-Filament Systems)
- Battery Spark Ignition included
- TMS System with Safety Valve turns gas off when flame goes out
- Robust ignition system with full BTU throughput
Manuals for Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner
Specifications for Firegear TPSI Round Drop-In Liquid Propane Fire Pit Burner FPB-19RBS16TPSI-P
- Pan Size: 19"
- Burner Size: 16"
- BTU: 75,000
- Ignition System:TPSI
- Burner Pan Type:Drop-In
- Burner Pan Material:Stainless Steel
- Pan Depth:2
- Min/Max Opening:19 - 20
- Inside Pan:19
- Ground Level:8
- Side Wall:36
- Combustible Ceiling:96
- Combustible Wall:18
Caution:DO NOT USE REGULAR STONE OR ROCK due to susceptibility of explosion.
Gas Pressure
Natural Gas:
- Min. Inlet: 3.5WC (0.87kPa)
- Max. Inlet: 10.5 WC (2.61kPa)
- Normal Inlet: 7.0 WC (1.74kPa)
Liquid Propane:
- Min. Inlet: 10.5 WC (2.61kPa)
- Max. Inlet:13.0 WC (3.23kPa)
- Normal Inlet:11.0 WC (2.73kPa)
Disclaimer: BTU listings are based on 7.0WC for natural gas and 11.0WC for liquid propane (LP) to the gas valve. Flex line size and proper gas pipe sizing will alsoaffect BTU's. As a result, your BTUs may vary slightly from Table 2 specifications.
